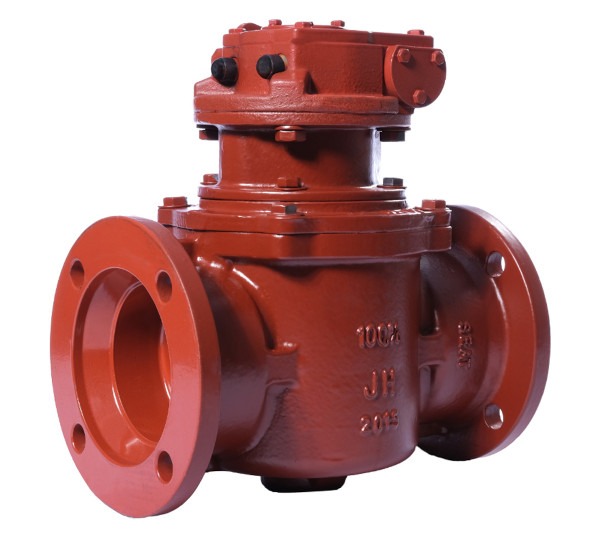

MPI McWane – Eccentric Plug Valves

STANDARD FEATURES

• Rectangular Port Design: The cylindrical plug and rectangular port provide a rotation alignment by the eccentric motion making uniform and full contact with the welded nickel seat.
• Adaptable Actuation: EPVs can be ordered with electric, pneumatic, or hydraulic actuators to fit the needs of your system.
• Full Flow Design: Allows laminar (smooth or regular) flow in the body resulting in low head loss and passage of larger solids preventing clogging or build up.
• Extended Life Plug: Ductile iron and fully encapsulated with Buna-N (NBR) for extended life in demanding applications.
• Ease of Operation: Stem bearings are made of heavy duty 316 stainless steel permanently lubricated on upper and lower plug journals to provide ease of operation after long periods of inactivity.
• Built to Endure: PTFE thrust bearings reduce operating force and wear to the plug and body. All fasteners are 316 stainless steel.
• A full line of accessories and options are available that include extension stems, extended bonnets, floor stands, valve boxes, operating nuts, hand wheels, levers, positioners, fully bi-directional at rated pressure, switches, and solenoid valves as well as speed control valves.
• EPVs are designed and built to AWWA C517 standards.
